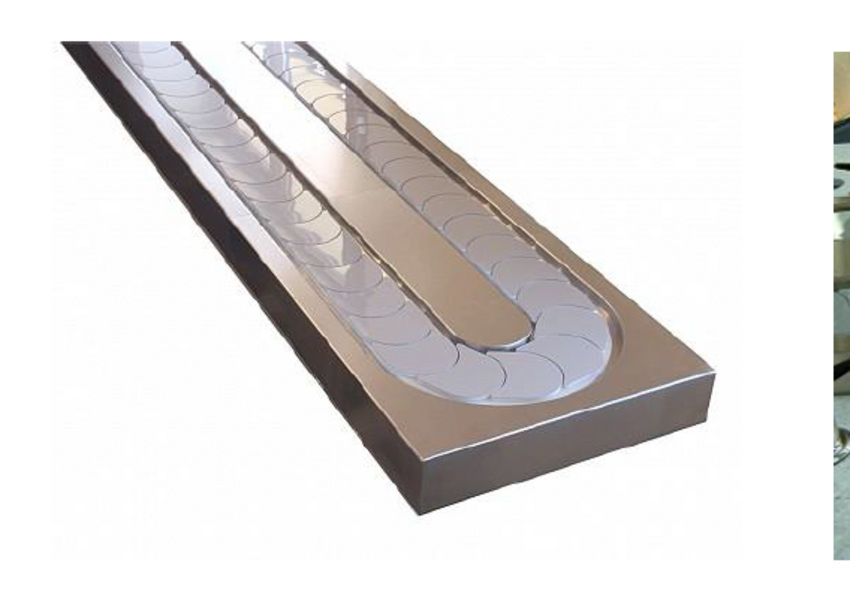

Sushi Conveyor Hire: Twin Lane SC114T 420mm wide, complete with support legs or supplied without legs to mount onto existing tables.

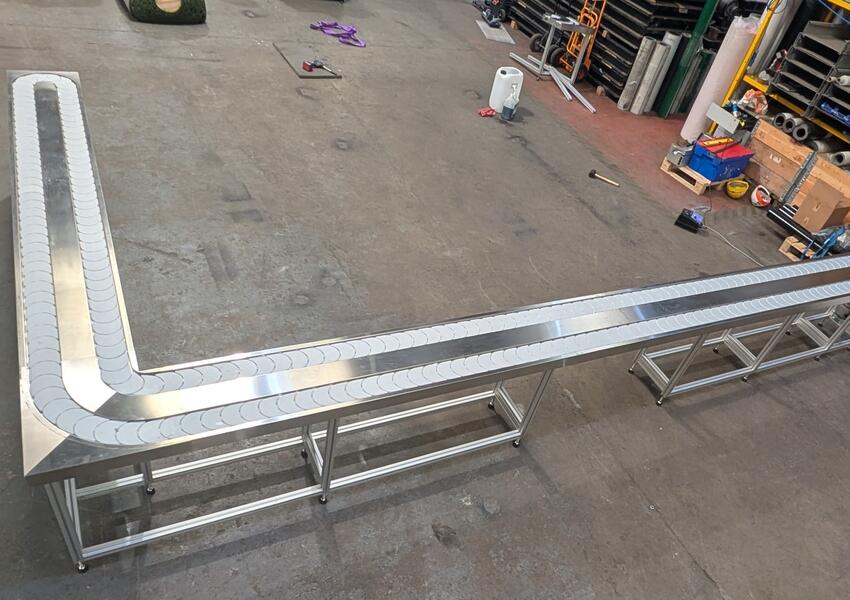

L shape long leg

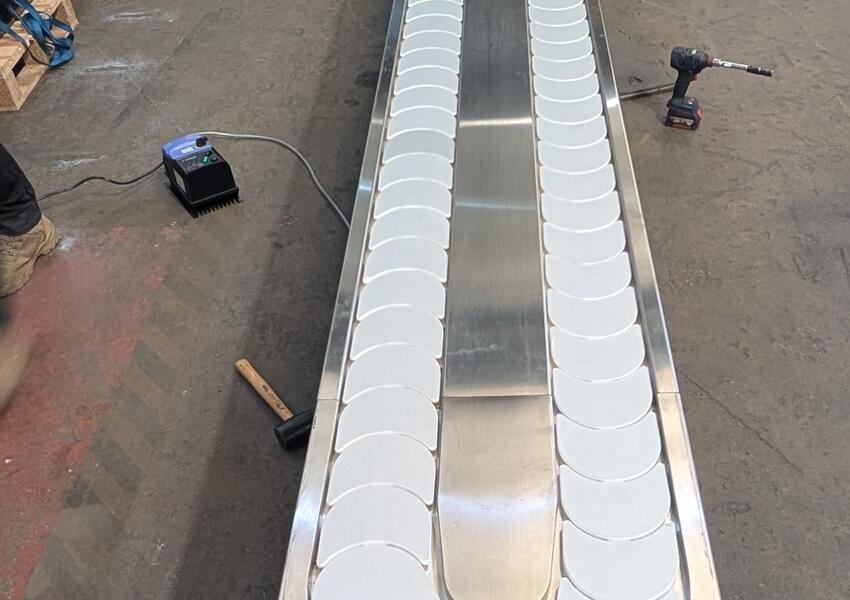

Straight

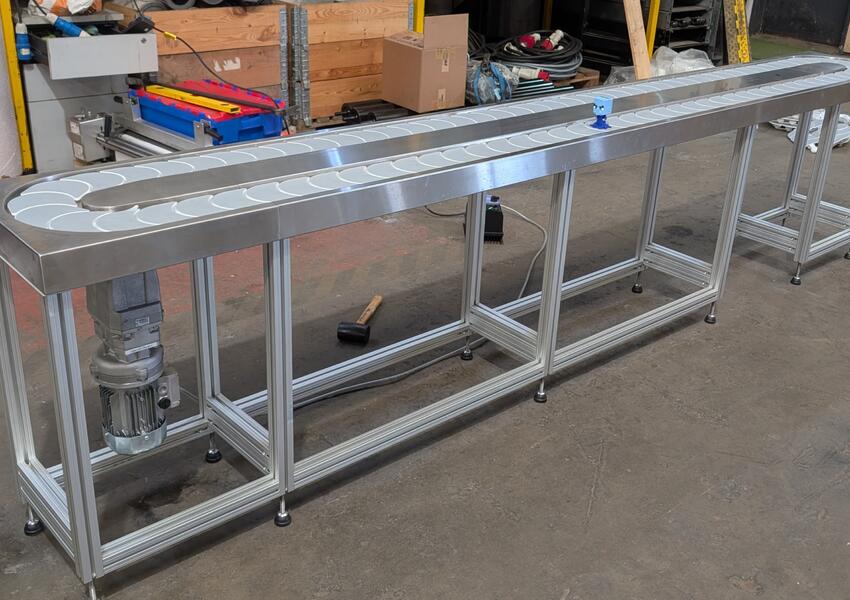

Straight
Viktor & Rolf
Variable speed motor control, with an OPTIDRIVE Inverter E3, IP66.
Invertor with plastic enclosure with digital frequency display, stop start toggle switch, speed control pot & on/off power switch.
Drive is a 0.12Kw geared motor. Inverter to give 3 to 8.7 m/min speed range.
Normal speed is 6m/min at 50hz or 3m/min at 25Hz.
Supply voltage, 50Hz, 1-phase. 13 Amp max.
Motor Voltage: 220v, 50Hz, 3-phase.
Chain width is 114mm, acetal white, top plate plain polyester, self-adhesive tops in a silver matt finish.
Conveyor frame: Fabricated stainless steel with bright 4B hairline finish 420mm wide.
See General typical layouts (Option 1 to Option 7) with some dimensions.
See Sushi Conveyor Hire Brochure….
Contact: Andrew Canning, email: andrew.canning@canningconveyor.co.uk
Gary Smith, email: garysmithcctvandfilm@gmail.com
